| Model Number : | Y-50Z (0-60 psi ) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 300,000 pcs per month |
| Delivery Time : | 30-50 work days |

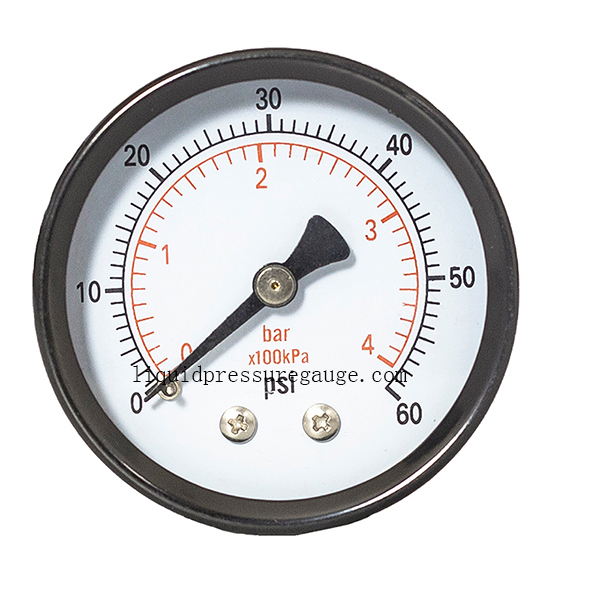

2 inch General Pressure Gauge, 0-60 psi/bar, 1/4 NPT central back Mount, black painted Steel case and Brass Connection
Applications:
Hydraulic and pneumatic systems
Pumps, compressors, water systems, regulators
Suitable for fluid medium which does not clog connection port or
corrode copper alloy
Features:
- Range: 0-60 psi
- 1/4 BSP back mount
- Steel case
- Steel ring
- Glass window
- Brass internal
- Dial: 2"
- Opitional: lead free brass internal
| Product name | General pressure gauge |
| Aplication | It can be used for measuring pressure of air, gas or liquid which doesn't corrode copper alloy. |
| Face dia | 1-1/2", 2", 2-1/2" |
| Case | black painted steel |
| Ring | black painted steel |
| Connetion & socket | brass |
| Bourdon tube | copper alloy |
| Pointer and dial | aluminum |
| Window | glass |
| Range | Vacuum, compound, 0-6000 psi |
| Mount | back connection |
|
|
