| Model Number : | Y-50 (0-16 bar) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 300,000 pcs per month |
| Delivery Time : | 30-50 work days |

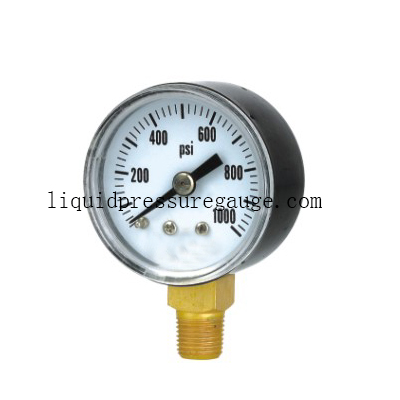

2" General Pressure Gauge,0-1000 psi,1/4 NPT Lower Mount, Black painted Steel case and Brass Connection
General pressure gauge is suitable for measuring the positive, negative or negative pressure of liquid, gas and other fluid media that do not explode, crystallize, or solidify, and are not corrosive to copper (copper alloy) and tin-lead solder.
Features:
- Range: 0-1000 psi
- 1/8 BSP lower mount
- Steel case
- Brass internal
- PC window
- Dial: 1.5"
- Opitional: 1/8 NPT, 1/4 NPT
| Product name | General pressure gauge |
| Aplication | It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy. |
| Face dia | 1-1/2",2",2-1/2", 3" |
| Case | black painted steel |
| Connetion & socket | brass |
| Bourdon tube | copper alloy |
| Pointer and dial | aluminum |
| Window | PC |
| Range | Vacuum, compound, 0-6000 psi |
| Mount | lower mount |
|
|
