Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 400,000 pcs per month |
| Delivery Time : | 20-40 work days |
| Model Number : | YN-60Z ( 0-230 psi ) |

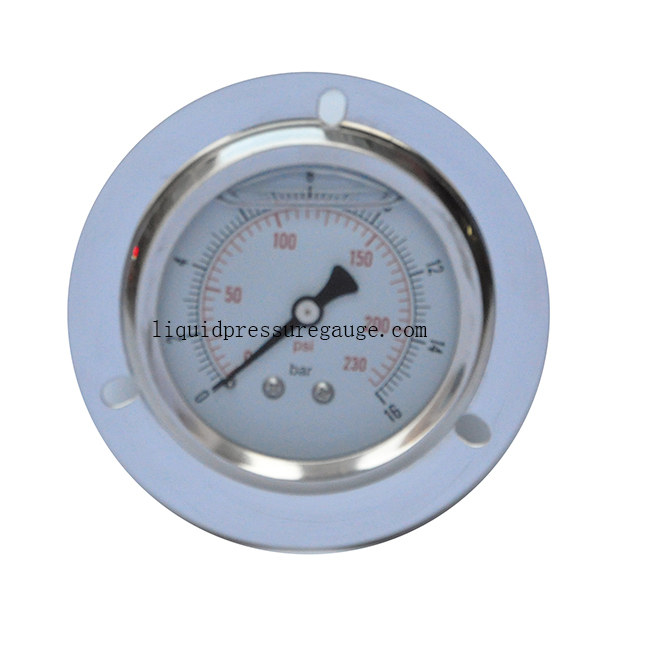

2-1/2" Pressure Gauge, fillled with glycerine, 0-230 psi/bar,1/4 BSP back mount, stainless steel and brass internal
Measuring the pressure of the high corrosion media, the material should be stainless steel, the gauges have function of virbration-proof. The measuring range is 0-16 bar.
Features:
- With front flange
- With U-clamp
- Back mount
- Filled with glycerine
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine , silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | back connection |
| Accuracy | ±2.5% |
| Opitional | with flange |
| Opitinal | with U-clamp |
|
|
