| Model Number : | YN-40 Z( 0-2 bar ) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 400,000 pcs per month |
| Delivery Time : | 20-40 work days |

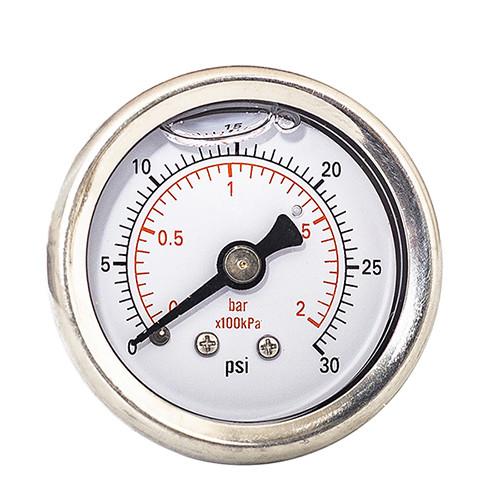

1-1/2 inch Pressure Gauge, glycerine, 0-2 bar/Kpa/psi, 1/4 BSP back mount, stainless steel case and brass internal
The vibration-proof pressure gauge is applied to the occasion with dynamic load and vibration. The gauges can be used to measure the pressure of gas or liquid which can't corrode copper alloy. The measuring range is 0-30 psi.
Features:
- Range: 0-30 psi
- Dial: 1-1/2"
- 1/8" NPT back mount
- Opitional: 2", 2-1/2"
| Product name | Liquid filled vacuume gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 1-1/2",2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Back mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
|
|
