Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 400,000 pcs per month |
| Delivery Time : | 20-40 work days |
| Model Number : | YN-60( 0-230 psi ) |

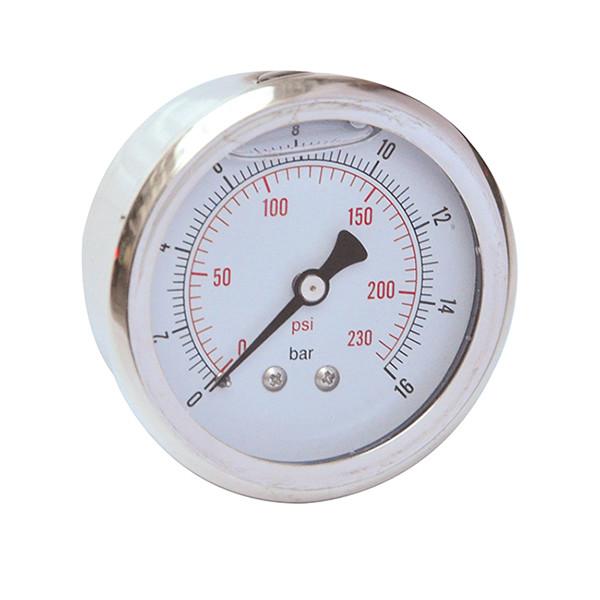

2-1/2" Liquid filled Pressure Gauge,0-230 psi/bar, 1/4 BSP back mount, stainless steel case and brass internal
The gauge is used for measuring pressure of air, gas or liquid which dose not corrode copper alloy. It used for measuring media pressure with vibration or pulsation.
Features:
- 1/4 BSP back mount
- Ring: stainless steel
- Dial: 2-1/2
- Stainless steel
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 1.5", 2", 2.5" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine or silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | back connection , lower mount ( can be with flange or U-clamp) |
| Accuracy | ±2.5% |
| Opitional 1 | With flange |
| Opitional 2 | U-clamp |
|
|
