| Model Number : | YN-60ZBF ( 0-230 psi ) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 400,000 pcs per month |
| Delivery Time : | 20-40 work days |

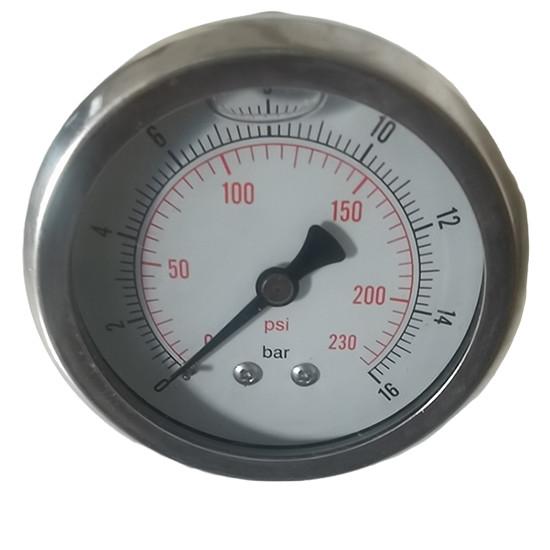

2-1/2 inch liuqid fillled Pressure Gauge, glycerine, silicone oil, stainless steel, 0-230psi/bar, 1/4 BSP back mount,
The gauge is used for measuring pressure of air, gas or liquid which dose not corrode copper alloy. It used for measuring media pressure with vibration or pulsation. The measuring range can covers from Vacuum to 15,000 psi.
Features:
- Stainless steel case
- Stainless steel internal
- Aluminum pointer
- 1/4 NPT back mount
- Dial: 2-1/2"
- Opitinal: 2"
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 1-1/2", 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | Stainless steel |
| Movement | Stainless steel |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Back mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
|
|
