| Model Number : | YN-160 ( 0-350 psi ) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 400,000 pcs per month |
| Delivery Time : | 20-40 work days |

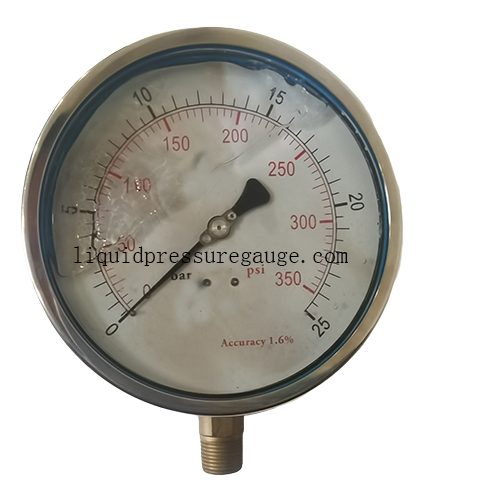

6" Liquid Pressure Gauge,zero adjustable pointer,0-350 psi,lower mount, 1/2 NPT, stainless steel case and brass internal
Application:
The gauge can be used where harmful vibration and pulsation are present. The range is 0-350 psi.
Features:
- Dial: 6"
- Stainless steel bayonet case
- 1/2 NPT lower mount
- Zero adjustable pointer
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 6" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Pointer | zero ajustable pointer |
| Window | Safety glass |
| Liquid | glycerine or silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | lower mount |
| Accuracy | ±1.6% |
| Opitional 1 | With flange |
| Opitional 2 | U-clamp |
|
|
