Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 300,000 pcs per month |
| Delivery Time : | 30-50 work days |
| Model Number : | Y-50 (0-230 psi ) |

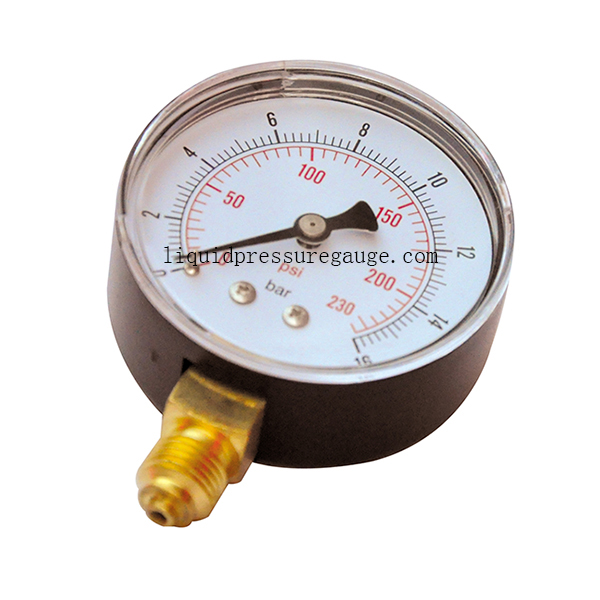

2-1/2 inch dry Pressure Gauge, PC lens ,0-230 psi/bar,1/4 BSP Lower Mount,ABS or steel case and Brass Connection
Suitable for measuring the pressure of water, gas, oil which will not obstruct the pressure system or attack copper alloy parts.The measuring range 0-16 psi..
Features:
- Range: 0-230 psi
- 1/4 NPT lower mount
- ABS case
- PC window
- Brass internal
- Dial: 2"
- Opitional: 1/4 BSP, 1/8 BSP
| Product name | General pressure gauge with safety glass window |
| Aplication | It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy. |
| Face dia | 2", 2-1/2" |
| Case | ABS or black painted case |
| Connetion & socket | brass |
| Bourdon tube | copper alloy |
| Pointer and dial | aluminum |
| Window | safety glass |
| Range | Vacuum, compound, 0-6000 psi |
| Mount | bottom connection ( lower mount ) |
|
|
