Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20,000 pcs per month |
| Delivery Time : | 20-30 work days |
| Model Number : | JTPT-01 |

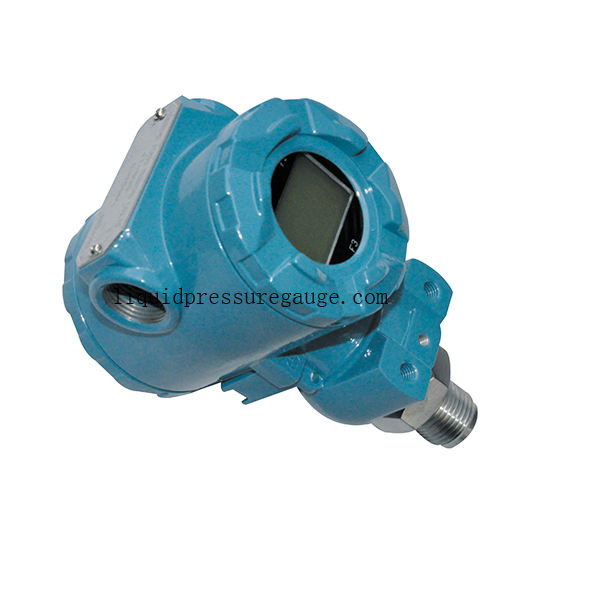

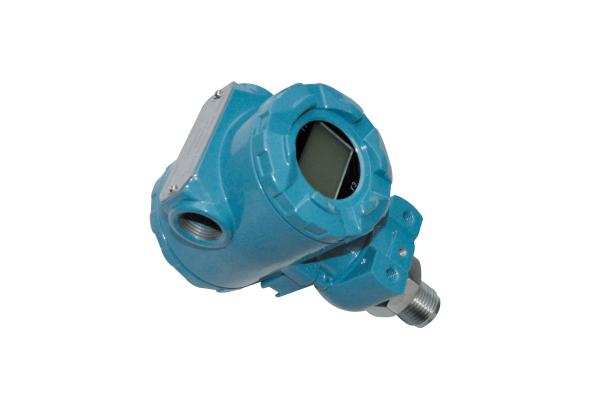

Diffused silicon pressure transmitter,0-20 mA,12-36V DC, LCD digital display indicator
It is widely used in chemical, electricity, petroleum etc.The smart pressure transmiters can be realized zero adjustment, range settings.
Features:
- Filled with silicone oil
- Housing material: aluminum
- Output: 4-20 mA
- Supply power: 12-36 V DC
- With LCD digital display indicator
- Accuracy: 0.1%
| Product name | diffused silicon pressure transmitter |
| Range | 0-60000 Kpa |
| Accuracy | 0.1% |
| Overload | 120% |
| Fill fluid | silicone oil |
| Isolating diaphragm material | SS316 ,SS316L, Hastelloy , Monel , Tantalum |
| Housing material | aluminum |
| Working temperature | -25-75℃ |
| Opitional 1 | Analog type ( code E), intelligent type with Hart protocol ( Code S) |
| Opitional 2 | with three-way manifold, five-way manifold |
| Opitional 3 | G1/2, 1/2 NPT or made as request |
|
|
