Model Number : | YXC-100ZT (0-5800 PSI ) |

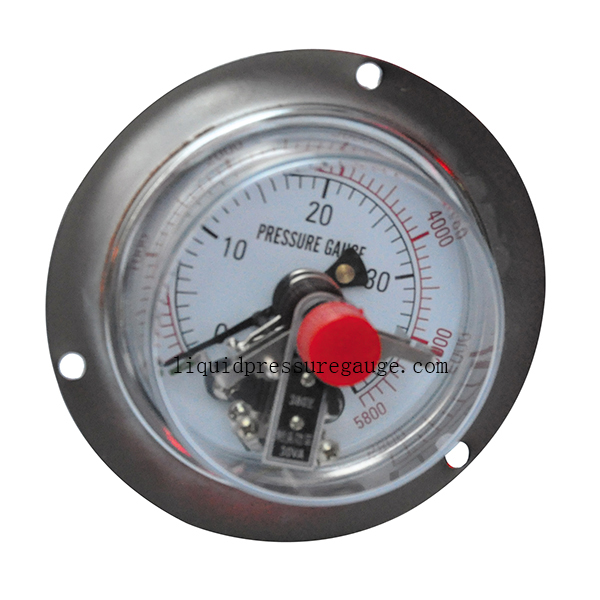

4 inch Electric contact Pressure Gauge, 0-5800 PSI/bar ,back Mount, Black painted Steel case and Brass Connection
Pressure gauges are widely used in mining, hydraulic,agricultural and other industries. The meausuring range covers 0-58,000 psi.
Features:
- Range: 0-5800 psi
- With front flange
- 1/2 NPT back mount
- Steel case
- Brass internal
- PC window
- Dial: 4"
- Opitional:1/2 BSP
Product name | Electric contact pressure gauge with flange |
Application | It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy. |
Face dia | 2-1/2", 4" |
Case | black painted steel |
Ring | black painted steel |
Connetion & socket | brass |
Bourdon tube | copper alloy |
Pointer and dial | aluminum |
Window | safety glass |
Range | Vacuum, compound, 0-10,000 psi |
Mount | back mount |
![]() |
