Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 20-40 work days |
| Model Number : | YN-100BF(0-1 Mpa) |

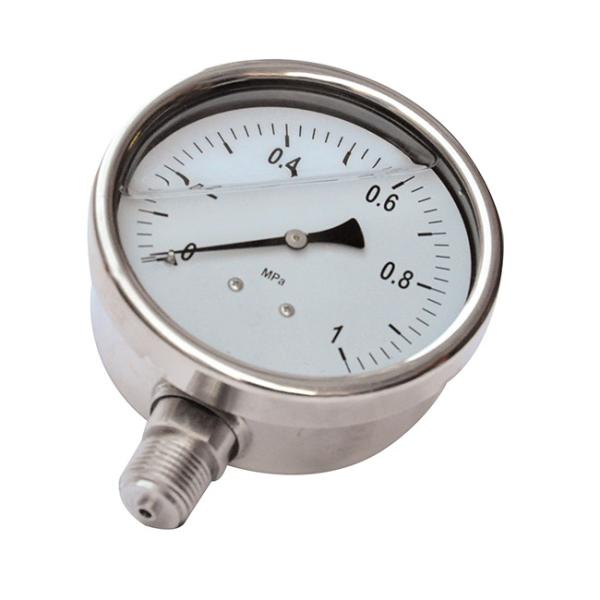

4 inch Stainsteel steel Liquid filled Pressure Gauge, glycerine,0-1 Map,1/2 NPT lower mount, bayonet
The gauges have good vibration-resisting performance,suitable for the working circumstance with mechanical vibration and medium pulse.
Features:
- 4 inch dial
- Range: 0-1 Mpa
- 1/2 BSP lower mount
- Stainless steel bayonet case
- Stainless steel internal
- Filled with glycerine
- Opitional: 1/2 NPT lower mount
| Product name | bayonet type pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 4" |
| Case | stainless steel |
| Bayonet | stainless steel |
| Connetion & socket: | stainless steel |
| Movement | stainless steel |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine , silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | lower mount |
| Accuracy | ±1.6% |
| Opitional 1 | With flange |
| Opitional 2 | U-clamp |
|
|
