| Model Number : | YN-100BF(0-1 Mpa) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 20-40 work days |

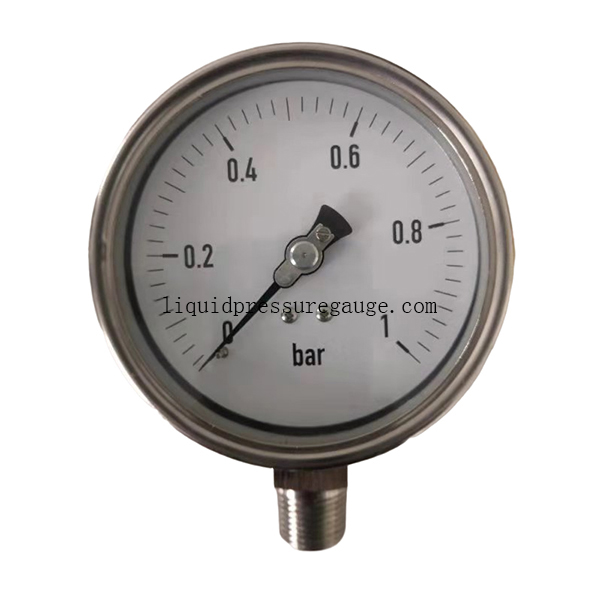

4 inch Stainsteel steel Liquid filled Pressure Gauge, glycerine,0-1 Map,1/2 NPT lower mount, welding connection,bayonet
The gauge can be used in chemical, petrochemical, power stations and so on. The measuring range is 0-1 bar.
Features:
- Dial: 4"
- Stainless steel case
- Stainless steel internal
- Bayonet type
- With zero point adjustment setting
- Filled with glycerine
| Product name | bayonet type pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 4" |
| Case | stainless steel |
| Bayonet | stainless steel |
| Connetion & socket: | stainless steel |
| Movement | stainless steel |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine , silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | lower mount |
| Accuracy | ±1.6% |
| Opitional 1 | With flange |
| Opitional 2 | U-clamp |
|
|
