| Model Number : | YN-60 ( 0-1000psi ) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 400,000 pcs per month |
| Delivery Time : | 20-40 work days |

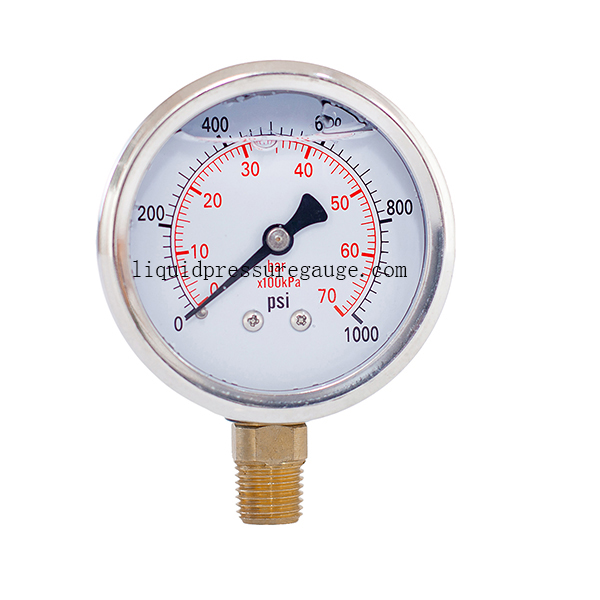

2-1/2 inch Pressure Gauge, glycerine, 0-1000 psi/bar/kpa, 1/4 BSP lower mount, stainless steel case and brass internal
This liquid filled pressure gauge is designed for media which is not corrosive to brass. It can be also used in viration or pulsation environment. The range is 0-1,000 psi.
Features:
- 1000 psi /bar/Kpa
- 2-1/2 dia
- 1/4 NPT brass connection
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Lower mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
|
|
