Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Model Number : | YN-60 Z( 0-30 psi ) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 400,000 pcs per month |
| Delivery Time : | 20-40 work days |

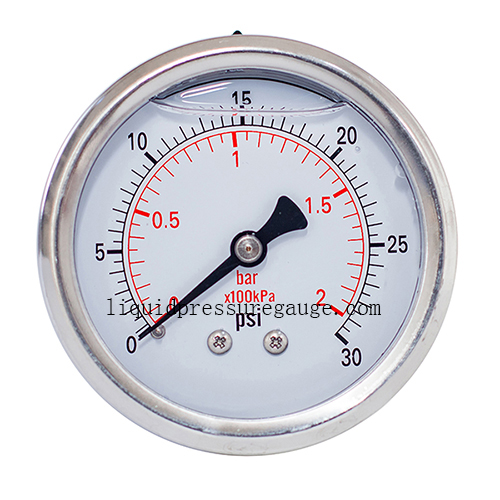

2-1/2 inch Pressure Gauge, glycerine, 0-30 psi/bar/Kpa, 1/4 BSP back mount, stainless steel case and brass internal
Application:
Suited for use with water,oil,air,gas or other non-corrosive media Liquid filling version for adverse service conditions where pulsation or vibration exists.The range is 0-30 psi.
Feature:
- Range: 0-30 psi
- Double scale: psi/bar
- Filled with glycerine
- Opitional: filled with silicon oil
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Back mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
|
|
