Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 400,000 pcs per month |
| Delivery Time : | 20-40 work days |
| Model Number : | YN-100 ( 0-1000 psi ) |

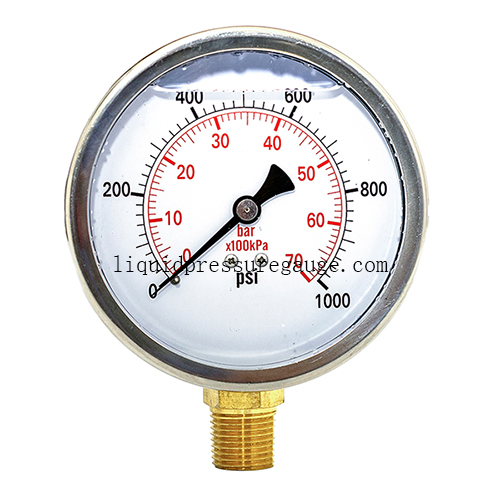

4 inch Liquid filled Pressure Gauge,0-1000 psi/bar/kpa ,lower mount, 1/2 NPT, stainless steel case and brass internal
Stainless steel case with durable constuction is built to outlast the competition from normal steel or plastic case gauge. The superior quality steel and brass ensure the gauge corrosion resistance and extends the gauge life.
Features:
- 4 inch dial
- Range: 0-1000 psi
- Double scale
- 1/2 NPT lower mount
- Stainless steel case
- Crimp on bezel
- Stainless steel internal
- Filled with glycerine
- Opitional: 1/2 BSP lower mount
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 4" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine or silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | lower mount |
| Accuracy | ±1.6% |
| Opitional 1 | With flange |
| Opitional 2 | U-clamp |
|
|
