Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Delivery Time : | 20-40 work days |
| Model Number : | YE-100(0-250 mbar ) |

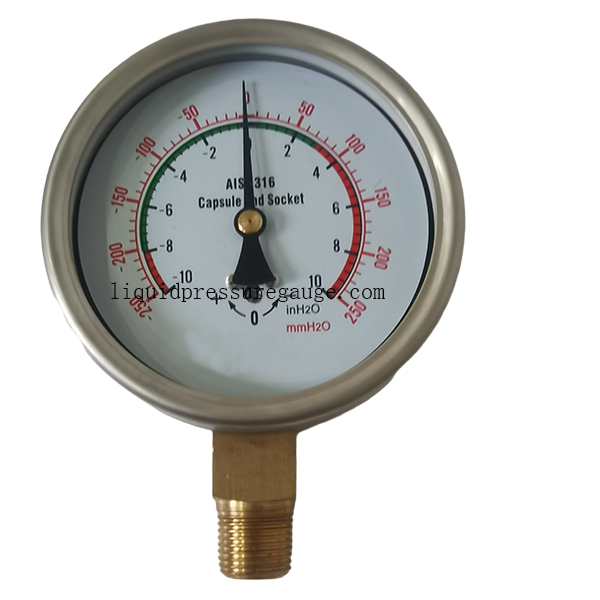

4" Capsule low Pressure Gauge,0-250 mbar ,1/2 NPT lower mount, safety glass, stainless steel case and brass internal
For low pressure measurement in medical, industrial and scientific research applications.Mounting options include centre back, bottom connection and clamp fixing. Both metric and Imperial thread sizes are available.
Features:
- Range: -250-250 IWC
- With zero point adjustment setting
- 1/2 NPT lower mount
- Stainless steel case
- Stainless steel bayonet ring
- PC window
- Brass internal
- Dial: 4"
- Opitional: 1/2 BSP
Product name | Capsule pressure gauge |
| Application | It is used for measuring micro pressure of air, gas or liquid which does not corrode copper alloy. |
| Face dia | 4" |
| Case | stainless steel |
| Connetion & socket | brass |
| Capsule | copper alloy |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | glass |
| Range | Vacuum, compound, 0-600 mbar |
| Mount | lower mounting |
| Setting | zero adustment setting |
| Accuracy | ±1.6% |
|
|
