Yueqing Jintu Trading Co.,Ltd
5 Years
| Ask Lasest Price | |
| Model Number : | YE-100(-60-5 mbar ) |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Delivery Time : | 20-40 work days |

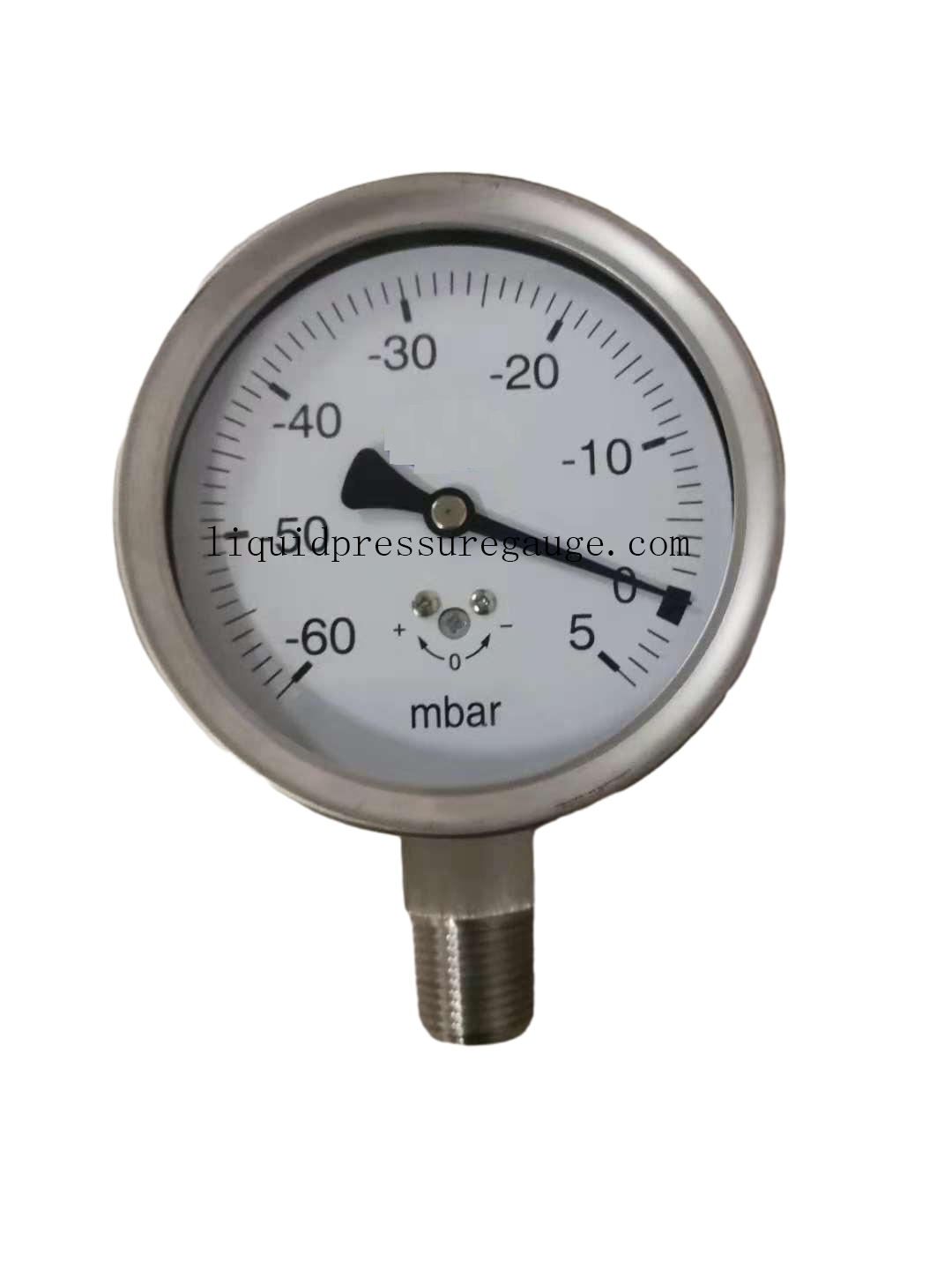

4" Capsule compound Gauge,-60-5 mbar ,1/2 NPT lower mount, safety glass, stainless steel bayonet case and ss internal
Capsule pressure gauge is designed for accurate measuring on low pressure systems of gas, water, air, or any media.The gauge has a calibration screw to adjust the pointer if necessary.The measuring range covers from vacuum to 600 mbar.
Features:
- Range: -60-5 mbar
- With zero point adjustment setting
- 1/2 NPT lower mount
- Stainless steel case
- Stainless steel bayonet ring
- PC window
- Stainless steel internal
- Dial: 4"
- Opitional: 1/2 BSP
Product name | Capsule compound gauge |
| Application | It is used for measuring micro pressure of air, gas or liquid which does not corrode copper alloy. |
| Face dia | 4" |
| Case | stainless steel |
| Connetion & socket | stainless steel |
| Capsule | stainless steel |
| Movement | stainlessl steel |
| Pointer and dial | aluminum |
| Window | glass |
| Range | Vacuum, compound, 0-600 mbar |
| Mount | lower mounting |
| Setting | zero adustment setting |
| Accuracy | ±1.6% |
|
|
