| Model Number : | TM-005 |

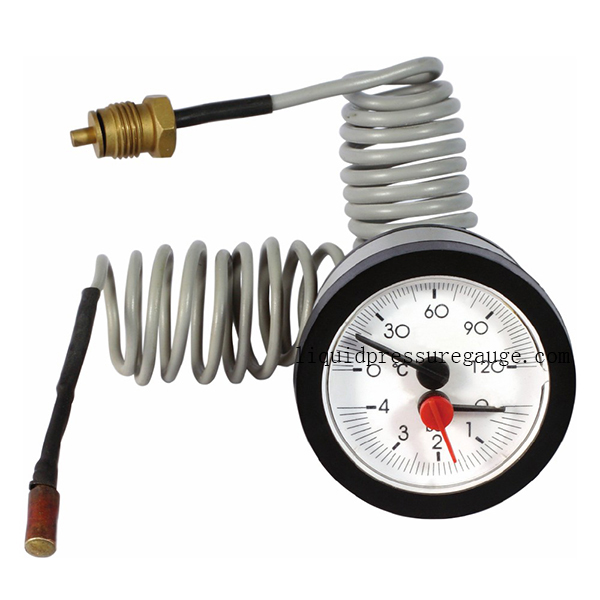

52 mm capillary thermomanometer,ABS black case, back connection, pressure temperature gauge,0-4 bar/0-120 ℃
For pressure and temperature measuring of gas, liquid which is not corrosive to brass.
Features:
- Range: 0-6 bar/ 0-120 ℃
- Dial: 52 mm
- Back connection
- ABS black case
- ABS black ring
- PC window
- Brass internal
- 1 m length of capillary
| Product name | capillary Thermomanometer |
| Nominal size(mm) | 52 |
| Range | 0-4 bar, 0-6 bar, 0-10 bar, 0-16 bar/0-120 ℃ , 0-160 ℃ |
| Accuracy | 2.5% |
| Case material | ABS |
| Connecton material | brass |
| Pointer | black painted aluminum |
| Movement | bimetallic coil |
| Inner | copper alloy |
| Capillary length | 1 m or made as request |
| Mount | Back mount |
| Window | glass |
|
|
