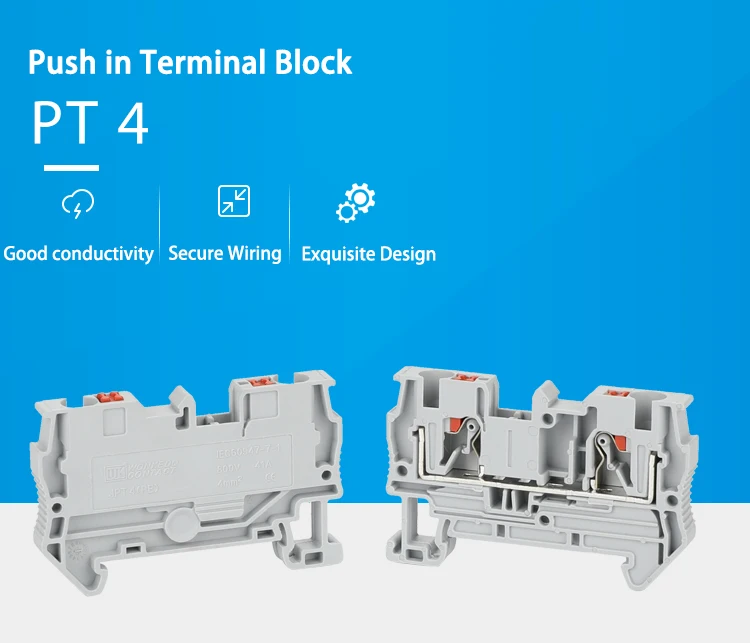

PT4 Push-in Terminal Strip Plug PT-4 4mm² Cable Connector Electrical Connect Din Rail Screwless Terminal Block PT 4

Product Categories

Yueqing Jintu Trading Co.,Ltd

Contact Now

Add to Cart

Technical Parameters

Type No.	Details	Accessories
PT-4	800V/41A 0.5-6mm²/0.5-4mm²; L56/H36.5/W6.2 mm	End cover: D-ST4
		Plug-in bridge: FBS2-6 , FBS3-6, FBS4-6, FBS5-6, FBS10-6
		Insertion bridge: NONE
		Marker strip: ZB6

Model Number	PT 4
Color	Grey, Blue, other color can be customized

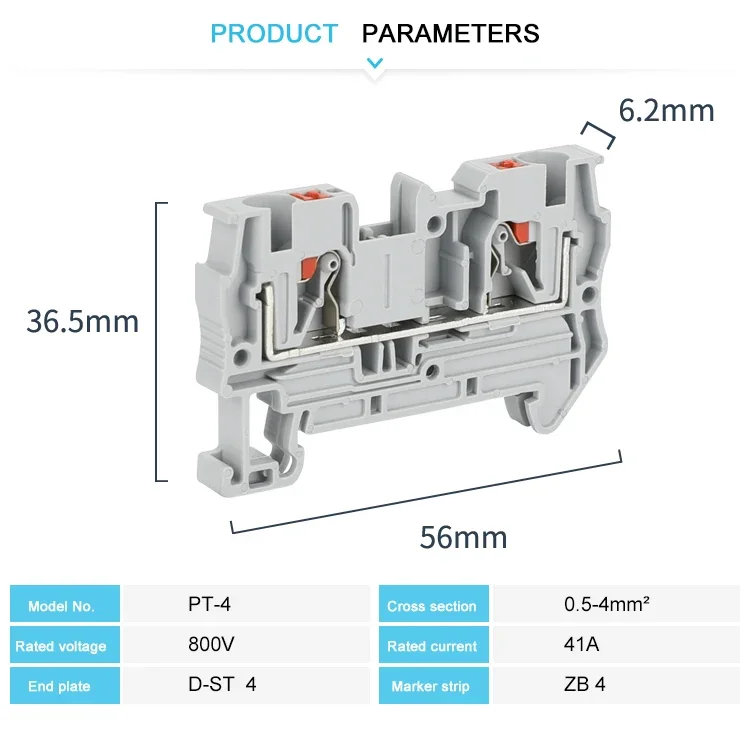

Length/Wide/Height (mm)	56/36.5/6.2
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.5-6mm2/ 0.5-4mm2
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	8.11g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001

PT4 Push-in Terminal Strip Plug PT-4 4mm² Cable Connector Electrical Connect Din Rail Screwless Terminal Block PT 4
