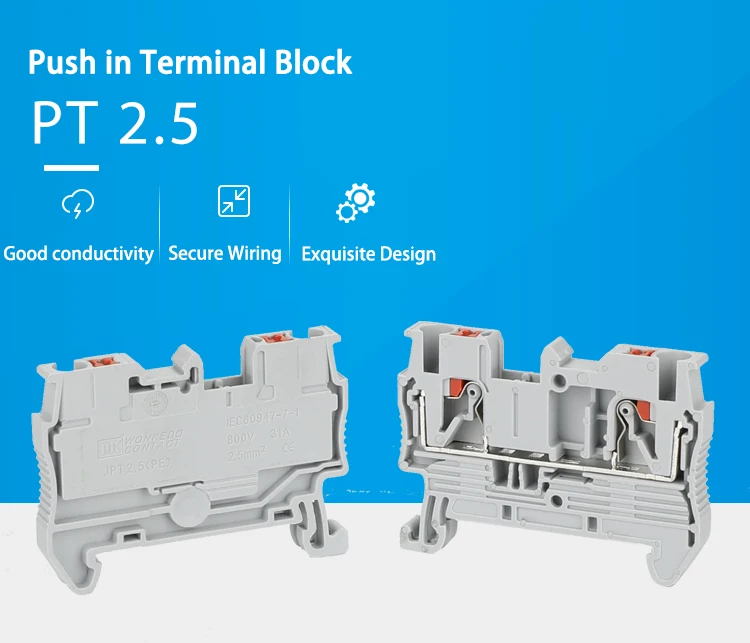

PT2.5 Push-in Terminal Block 2.5mm² Connector Spring Feed-Through Strip Plug PT-2.5 Wire Electrical Din Rail Contact

Product Categories

Yueqing Jintu Trading Co.,Ltd

Contact Now

Add to Cart

TECHNICAL PARAMETERS

Model Number	PT 2.5
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	48.5/36/5
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.2-4mm2/ 0.2-2.5mm2
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	5.79g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001

PT2.5 Push-in Terminal Block 2.5mm² Connector Spring Feed-Through Strip Plug PT-2.5 Wire Electrical Din Rail Contact
